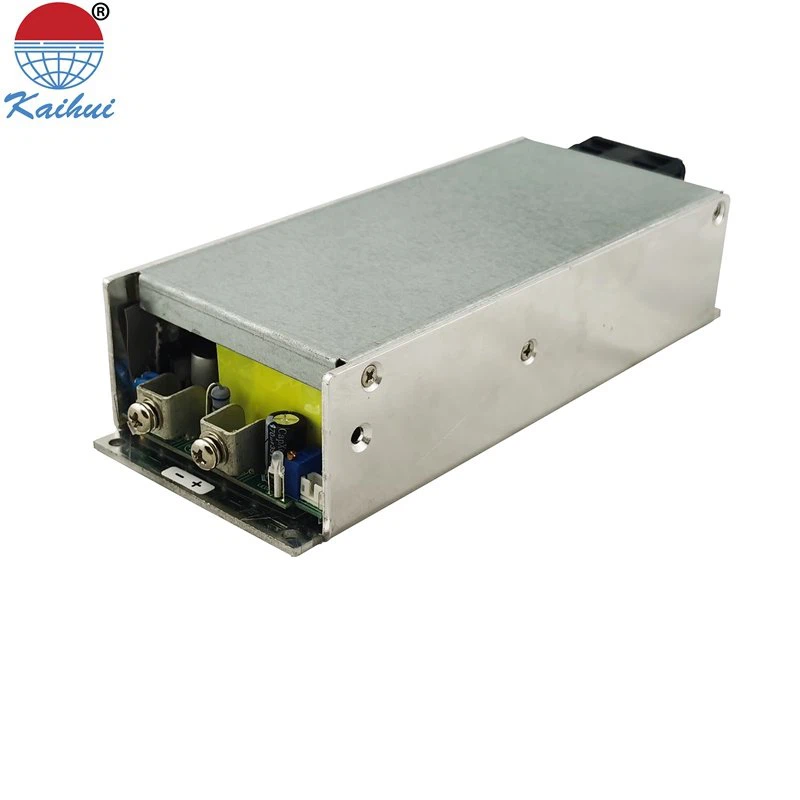

Cov kiv cua txias zog txhawb 24V 1200W, cov kiv cua txias yog tswj los ntawm qhov ntsuas kub, thaum qhov kub tshaj 45 ℃, kiv cua txias yuav pib ua haujlwm, txwv tsis pub lub kiv cua txias yuav tsis ua haujlwm, ua kom nyob ntsiag to.

Nta:

1, Qhov ua haujlwm siab 1200W switching power supply;

2, Ua-hauv EMI lim thiab PFC muaj nuj nqi, suab nrov tsawg, muaj kev ntseeg siab;

3, 24V fais fab mov nrog rau ntau yam ntawm AC input voltage;

4, 1200W fais fab mov nrog overload, luv Circuit Court, dhau-voltage thiab dhau kev tiv thaiv kev kub;

Tsis
Yam TSIS tau		K19H-UP1200S24F
Tsim Tawm	Tsim Tawm Voltage	24VDC
	Nyob Tam Sim No	50A
	Lub Hwj Chim Rated	1200W
	Ripple& Suab nrov	250mVp-p
	Tso Tawm ADJ.Range	22.8-25.2V
	Rau Cov Raug Lawm	±1%
	Kab Kev Cai	±0.5%
	Load Cov Kev Cai	±1%
	Teeb tsa, nce, Cia lub sijhawm	500ms, 30ms, 20ms
Cov lus qhia	Cov lus qhia Voltage Ntau Yam	100-240V AC
	Cov Tswv Yim Tam Sim No	6A / 230Vac, 12A / 115Vac
	Input Frequency	50-60Hz
	Qhov Zoo @ 230Vac	92%
	Lub Zog Khoom	PF ＞ 0.98 / 115V lossis PF ＞ 0.95 / 230V
	Inrush Tam Sim No	Txias pib 40A / 230Vac
	Nplooj Ntu Tam Sim No	0.5mA@240V
Kev Tiv Thaiv	Tshaj Load	105 ~ 150% Hiccup, rov ua haujlwm tsis siv neeg
	Luv Circuit Court	Hiccup, rov ua haujlwm tsis siv neeg
	Tso Tawm Ntau Dua	＞ 120% Txhawm kaw, Kaw kev tiv thaiv, Rov qab mus rau qhov qub tom qab rov ua dua
	Dhau Temp.,	＞ 105 ℃ nws yuav muaj kev tiv thaiv, tom qab ntawd rov ua haujlwm tsis siv neeg
Muaj nuj nqi	Ntxuam Khoom Siv	12V@0.3A rau tsav tus kiv cua, kam rau ua ± 15%, Ua nrog kiv cua yuam cua txias
Ib puag ncig	Ua Haujlwm Temp., Vaum	-20 ~ 60 ℃, 10 ~ 90% RH, Tsis muaj hws
	Cia Lub Sij Hawm., Vaum	-20 ~ 85 ℃, 10 ~ 95% RH
	Temp ,. Drift	±0.03%/℃ (0~50℃)
	Kev Co	10 ~ 500Hz, 2G 10min./1cycle, PERIOD RAU 60min. TXHUA AXES
Kev Ruaj Ntseg& EMC	Cov Qauv Kev Nyab Xeeb	GB4943
	Nrig Voltage	Kuv / PO / P: 3KV; Kuv / P-FG: 1.8KV; O / P-FG: 0.6KV AC 1min
	Rwb thaiv tsev Kuj	I / PO / P, I / P-FG, O / P-FG: 500VDC / 100M Ohms
	EMC Cov Qauv	EN55032 HOOB A EN61000-3-2
Lwm tus	MTBF	＞ 50K teev
	Qhov ntev	180 * 82 * 48mm (L * W * H)
	Nyhav	1.5KG
Sau ntawv	1. Txhua yam tsis xws luag 230VAC cov tswv yim, ntsuas cov ntsuas, ntsuas kub thaj tsam 25 ℃, ntsuas raws li 70% cov av noo; 2. Qhov Peev Xwm: suav nrog kev ua kom nkag siab, kab kev cai, thauj cov kev cai thiab lwm yam; 3. Ripple Test: 30cm ntev xa xov txuas rau lub zog txuas thiab cov load ntawm sab load thiab 0.1u thiab 47u lub zog rau 20MHz oscilloscope ntsuas ntawm qhov kawg load; 4. Kab kev cai: ntawm cov sijhawm thauj cov xwm txheej, cov hluav taws xob voltage hloov los ntawm qis rau siab ntsuas; 5.Txoj cai tswj kev thauj khoom: ntsuas cov khoom tso tawm los ntawm 0 txog 100% kev hloov khoom ntsuas ntsuas;
