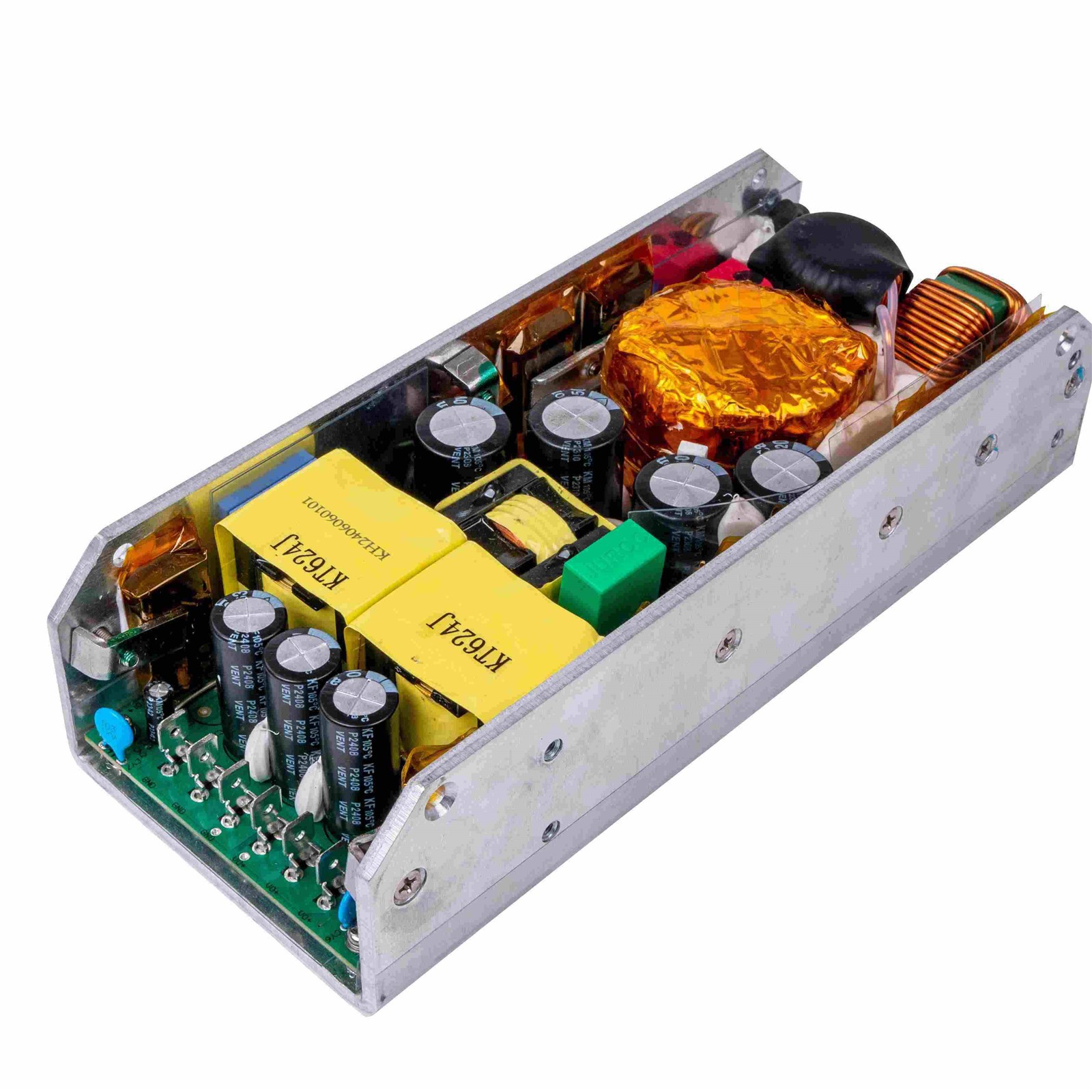

TSHIAB khoom DC52V 36V Fais fab mov

1, me me, kev ua haujlwm siab;

2, International universal tag nrho voltage input;

3, Ua tau - hauv kev ua haujlwm PFC;

4, Tshaj dhau, luv Circuit Court, dhau voltage, tshaj qhov kub thiab lwm yam kev tiv thaiv kev ua haujlwm.

Qhov no yog ib qho kev hloov pauv hluav taws xob tshwj xeeb tsim rau cov khoom siv teeb pom kev tshwj xeeb, tsis yog qhov dav dav - lub hom phiaj fais fab mov. Nws lub dual- cov qauv tsim tawm ntse cais cov khoom siv hluav taws xob xav tau ntawm cov khoom sib txawv: V1 yog lub luag haujlwm rau siab - cov khoom siv hluav taws xob (xws li LED lub teeb los yog cov qhov muag tawm), thaum V2 yog lub luag haujlwm rau kev tswj hwm thiab kev txav chaw.

1. Dual-Tshaj Tawm Tsim - Core Architecture Analysis

V1 Channel (+52VDC, 28A, 1456W):

Daim ntawv thov Speculation: Qhov no yog lub ntsiab fais fab channel, feem ntau yuav siv los tsav lub ntsiab lub teeb ntawm lub luminaire.

Rau LED Luminaires: Niaj hnub nimno siab- lub zog theem LED teeb yuav tsum muaj qhov hluav taws xob siab thiab siab tam sim no los tsav ntau txoj hlua ntawm siab - ci ntsa iab LEDs. Kev teeb tsa 52V / 28A yog qhov zoo tagnrho rau kev tsav tsheb ib lossis ib pawg siab -lub zog LEDs kom ua tiav qhov ci ntsa iab thiab nplua nuj xim (RGBW).

Rau Cov Hluav Taws Xob Hluav Taws Xob: Txawm hais tias lub teeb tawm ntawm nws tus kheej xav tau ntau KV ntawm qhov hluav taws xob siab rau qhov tshwm sim, nws cov khoom siv hluav taws xob hauv hluav taws xob feem ntau yuav tsum muaj qhov ruaj khov siab -voltage DC fais fab mov. 1456W ntawm lub hwj chim ntau tshaj qhov txaus los txhawb cov roj tawm qhov muag hauv 575W ~ 1200W ntau yam.

Xaus: V1 channel yog "lub plawv" ntawm lub luminaire, txiav txim siab nws qhov siab tshaj plaws tso zis brightness thiab xim ua haujlwm.

V2 Channel (+36VDC, 9.7A, 349.2W):

Daim ntawv thov Speculation: Qhov no yog lub koom haum pab fais fab channel, feem ntau yog siv los tsav kev tswj thiab kev txav chaw ntawm cov teeb pom kev zoo.

Stepper/Servo Motors: theem txav lub taub hau teeb yuav tsum tau lub kaum ntse ntse thiab txoj hauj lwm tswj. Lawv cov yias sab hauv (kab rov tav tig) thiab Tilt ( ntsug qaij) lub cev muaj zog feem ntau yog stepper lossis servo motors . 36V yog qhov zoo tshaj plaws rau kev txhawb nqa cov tsav tsheb ntawm cov motors, muab ceev, du, thiab muaj zog txav.

Tswj Circuits, Ntxuam, Stepper Motors, thiab lwm yam.: Cov khoom siv hluav taws xob no tseem ua rau lub rooj tsav xwm loj (CPU), DMX512 receiver nti, xim log, qauv log, tsom lub cev muaj zog, thiab lwm yam khoom siv pab cuam . 349W ntawm lub zog muab lub zog txaus rau cov txheej txheem nyuaj no.

2. Tso zis raug, kev tswj xyuas, thiab kev ntsuas kev ruaj ntseg

V1 Channel (Qhov tseeb ± 2%, Kab Kev Cai ± 0.1%, Txoj Cai Tsis Zoo ± 2%):

Analysis: Kev ua tau zoo heev. A ± 0.1% kab kev cai txhais tau hais tias kev hloov pauv hauv qhov hluav taws xob tseem ceeb muaj qhov cuam tshuam tsawg kawg nkaus ntawm cov zis hluav taws xob. A ± 2% kev tswj hwm kev thauj khoom txhais tau hais tias qhov tso zis hluav taws xob tseem nyob ruaj khov txawm hais tias lub teeb ci ntsa iab lossis tag nrho.

Kev cuam tshuam rau teeb pom kev zoo: Qhov no yog qhov tseem ceeb rau lub teeb ci tseem ceeb.

LED Lub Teeb Qhov Chaw: Qhov hluav taws xob ruaj khov ua kom ntseeg tau tias LED cov xim (xim kub, xim xim sib koom tes) tsis txav, tsis txhob pom flickering lossis qhov ci tsis sib xws. Qhov no yog qhov tseem ceeb tshwj xeeb rau kev thov kev siv xws li kev tshaj tawm hauv TV thiab kev ua yeeb yaj kiab.

Discharge Bulb Light Source: Cov khoom siv hluav taws xob ruaj khov yog qhov yuav tsum tau ua ua ntej rau kev ua haujlwm ruaj khov ntawm cov hluav taws xob ballast, kom ntseeg tau lub teeb lub neej thiab teeb pom kev zoo.

V2 Channel (Qhov tseeb ± 6%, Kab Kev Cai ± 0.5%, Txoj Cai Tsis Zoo ± 2%):

Kev tshuaj xyuas: Kev ua haujlwm tsis zoo yog qis dua V1 channel, tshwj xeeb tshaj yog cov khoom tso tawm raug (± 6%) thiab kab kev cai (± 0.5%). Qhov no feem ntau txhais tau hais tias cov khoom siv hluav taws xob rau cov channel no pheej yig dua lossis siv cov txheej txheem sib txawv (xws li tsis yog -Buck Circuit Court cais).

Kev cuam tshuam rau teeb pom kev zoo: Qhov no yog siv tau rau lub tshuab tsav tsheb. Stepper motors thiab servo motors tsis inherently rhiab heev rau qhov tseeb voltage; Lawv cov neeg tsav tsheb muaj kev tswj hwm hluav taws xob sab hauv thiab kev tswj xyuas tam sim no. Ntev npaum li qhov hluav taws xob nyob hauv qhov tsim nyog (piv txwv li, 36V ± 6% ≈ 33.8V ~ 38.2V), lub cev muaj zog yuav ua haujlwm ib txwm. ± 2% kev tswj xyuas kom ntseeg tau tias qhov hluav taws xob tsis hloov pauv tsis zoo nyob rau hauv cov khoom siv hluav taws xob xws li lub cev muaj zog pib- nce thiab nres, kom ntseeg tau tias kev txav mus los.

Nyob rau hauv ib lo lus, lub hwj chim mov no yog ib tug raug theem teeb pom kev zoo fais fab mov nrog ib tug meej tsim lub hom phiaj. Los ntawm dual - txoj kev architecture nrog qhov sib txawv ntawm qhov tseem ceeb thiab theem nrab txoj hauv kev, nws ua kom muaj kev ruaj ntseg ntawm lub teeb ci tseem ceeb thaum tseem ua tau raws li qhov xav tau ntawm lub zog ntawm cov lus tsa suab, ua tiav qhov sib npaug ntawm tus nqi. Nws yog qhov zoo tshaj plaws rau nruab nrab -rau- siab- kawg txav lub taub hau teeb, beam teeb, lossis qauv teeb. Rau cov tuam txhab teeb pom kev zoo, tus yuam sij yog tsim kom muaj kev tswj hwm thiab tsav lub voj voog raws li tus yam ntxwv ntawm V2 txoj hauv kev kom siv tag nrho cov khoom siv hluav taws xob ua haujlwm.

Q1, Dab tsi yog qhov tshaj -load tiv thaiv?

A1: Tus qauv tiv thaiv yog "Hiccup-zoo li" rov qab tsis siv neeg. Thaum overloaded ntawm 120-180%, cov khoom siv hluav taws xob yuav sib cuam tshuam rau kev rov pib dua, cia li rov qab mus rau qhov qub thaum lub overload tau so, tsis txhob muaj kev cuam tshuam ntawm phau ntawv.

Q2: Dab tsi yog qhov luv luv tiv thaiv & tso zis overvoltage tiv thaiv?

A2: Lub kaw lus kaw thiab yuav tsum muaj 5 feeb hluav taws xob kom rov zoo. Qhov no yog lub tshuab kev nyab xeeb los tiv thaiv kev puas tsuaj ntxiv los ntawm kev rov pib dua rov qab vim qhov ua tsis tiav tsis tu ncua (xws li lub voj voog luv luv lossis cov khoom siv sab hauv tsis ua haujlwm), thiab yuam cov neeg ua haujlwm saib xyuas lub kaw lus.

Q3: Dab tsi yog Input undervoltage tiv thaiv & overtemperature tiv thaiv?

A3: Cov qauv kev tiv thaiv yog Tsis siv neeg rov qab. Cov cuab yeej cia li kaw thaum lub input voltage tsawg dhau los yog qhov kub thiab txias siab dhau lawm, thiab rov pib dua thaum cov xwm txheej rov qab mus rau qhov qub, hais txog qhov tsis txaus ntseeg ib ntus.

Q4: Thaum twg qhov kev txiav txim yuav raug xa thiab xa tuaj?

A4: Rau cov qauv, 7-10 hnub ua haujlwm tom qab koj tau them nyiaj; 15-20 hnub ua haujlwm rau cov khoom siv hluav taws xob ntau.

Q5:Puas yog koj cov khoom tsim nyog rau kev lag luam wholesale thiab muag khoom?

A5: Yog lawm, cov khoom siv hluav taws xob tsim nyog rau cov lag luam wholesale thiab muag khoom.

Q6: Koj puas tuaj yeem muab kuv phau ntawv qhia kev pabcuam rau lub zog?

A6: Thov txim, peb tuaj yeem muab cov khoom siv fais fab.
